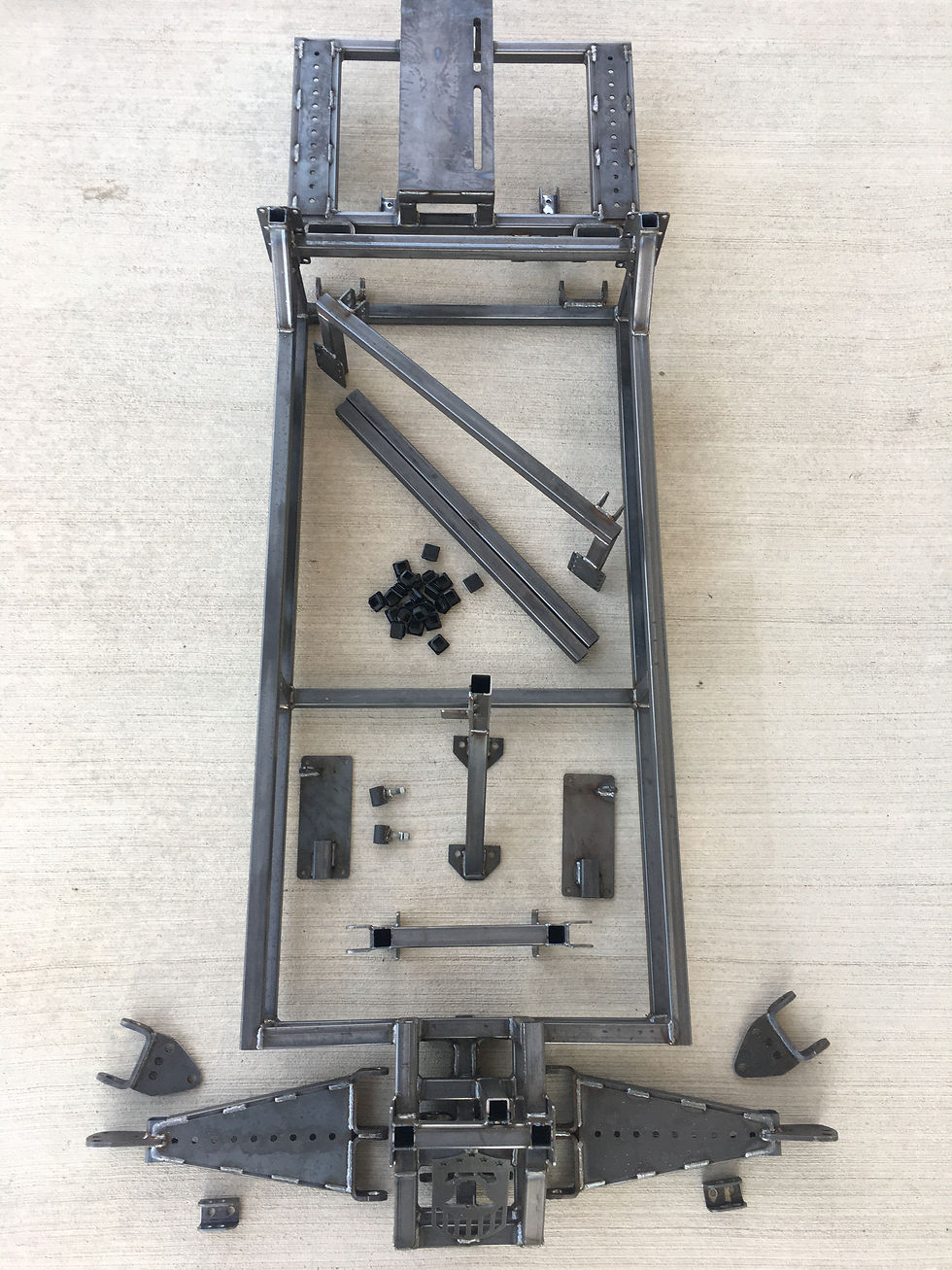

Screaming Eagle Suspension Go Kart Frame

New for 2021: side plates are now optional

                             slotted adjustment for rear steering shaft mount

                             more adjustablility with shock mounts

                             spindle mount angle is now adjustable

                             floor pan no longer available

• Made in USA

• Heavy duty suspension go kart frame fabricated with 1x1x14 gauge square tube

• Engineered for easy assembly

• Accepts up to a 18 HP engine

• Riders up to 350 lbs.

• Compatible with clutch or torque converter

• Multiple shock mounting points for adjustability (will accept 11'-20" long coil over shocks front & back)

• Special 3"x6" logo cutout welded on front of frame

• 3 bolt bearing hangers for 1" live axle

•  Accepts 4 go-kart coil over shocks

• Upper & lower adjustable steering shaft mounts

• Throttle & brake pedal mounts

• Throttle & brake cable mounts

• Adjustable spindle mount angle

• 10" disc brake caliper mount (optional hydraulic disc brake mount)

• Double reinforced universal engine mounting plate

• Seat belt mounting plates

• Screaming Eagle side plates optional

• Universal seat mounts, almost any seat will fit (go-kart, lawnmower, tractor, boat, car, etc.)

• Jig welded

• Square tube end caps for installation after painting is completed

• AWS certified

• Suspension go kart frame will be new unpainted steel (may have some surface rust)

• Approximately 13"x 23"x 70" ( 95 lbs.)

• Some drilling required

• Parts included: main frame, front a-arms, rear swing arm, upper/lower steering shaft mounts, seat mounts, adjustable spindle mounts, adjustable shock mounts, tube end caps
