Bolt-together Cooler Kart Frame

NOTE: pictures show optional wheel adaptors, rear brake option, and cooler cradle
NOTE #2: first 3 pictures show a shorter version which is no longer available
Made in USA

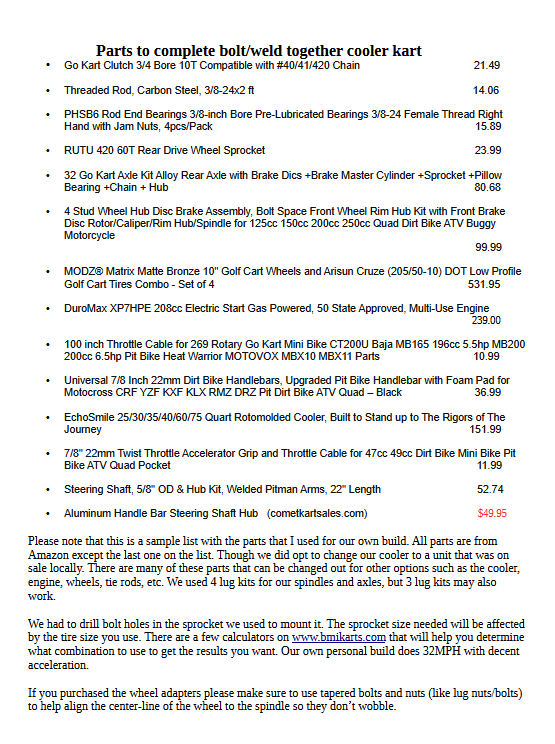

Designed to use spindle and rear axle parts kits that are available from Amazon
Overbuilt using 3/16” thick connection plates above and below main frame connections for strength
Motor mount has slotted holes specifically for 212cc engines
Motor mount is double reinforced to handle modified motors
The center 2 runners and the motor mount can be located in a variety of locations to accommodate your setup better
Spindle mounts are angled 10degrees to match the spindle kits for better handling
Set up for use with front and rear hydraulic disc brakes for optimum stopping power
No holes are pr-drilled in the frame to allow for some adjust-ability and reduced cost to the customer
All needed welding is already done
Optional wheel adapters for mounting 4x4 lug pattern wheels (crazy amount of wheel and tire options!)

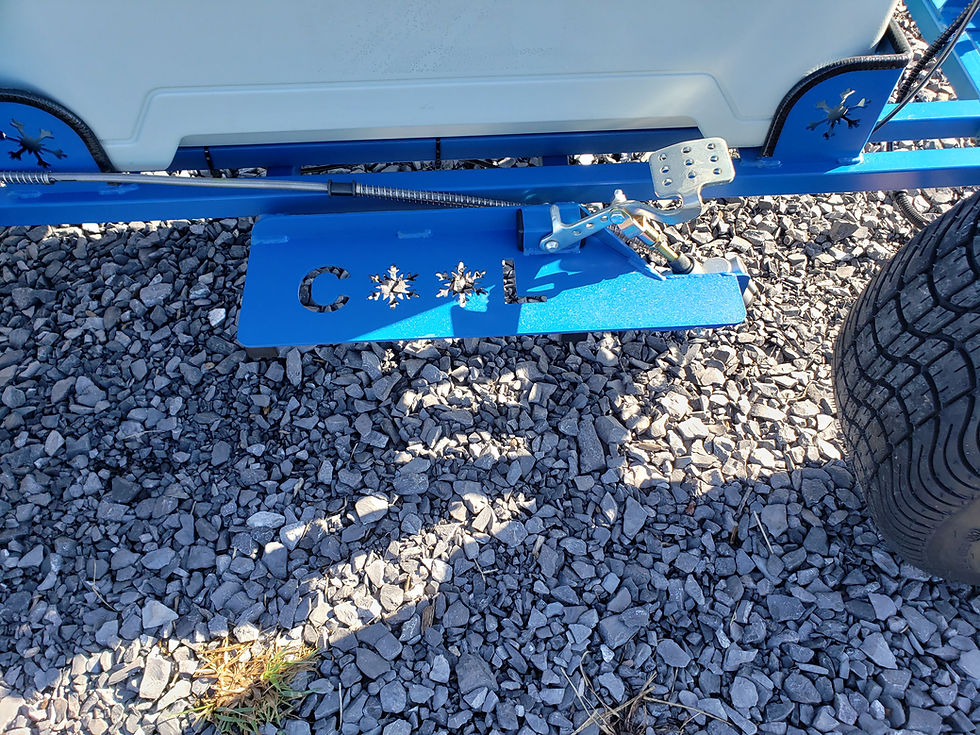

Optional rear brake caliper and foot brake pedal mounting kit (not needed if you want to reduce cost and only use the 2 front hydraulic disc brakes)
Suitable for kids and adults
Use a cooler up to 38" long
Easy to assemble with a few basic hand tools and a drill
Assembly instructions included
Technical support via email or text message is provided to all customers
Riders up to 500 lbs.
Great bonding experience with friends and family
Optional cooler cradle for ease of cooler removal (no cooler modification required)
Square tube end caps for installation after painting is completed
Frame will be new unpainted steel (may have some surface rust)
Approximately 5"x26"x58" (50 lbs.)
Some drilling required
Parts included: steel to build main frame; tube end caps; directions to assemble
